スイッチングトランス／PIN TYPE TRANSFORMER USE FOR SWICHING

TYPE
ピン本数
Ｋｐ
Ｋｓ
Ｐ
ピン径
Ｌ
Ｗ
Ｈ

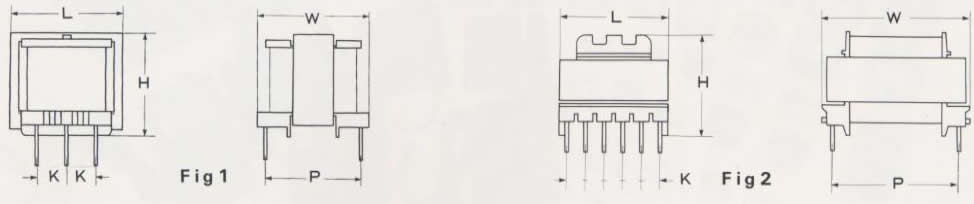

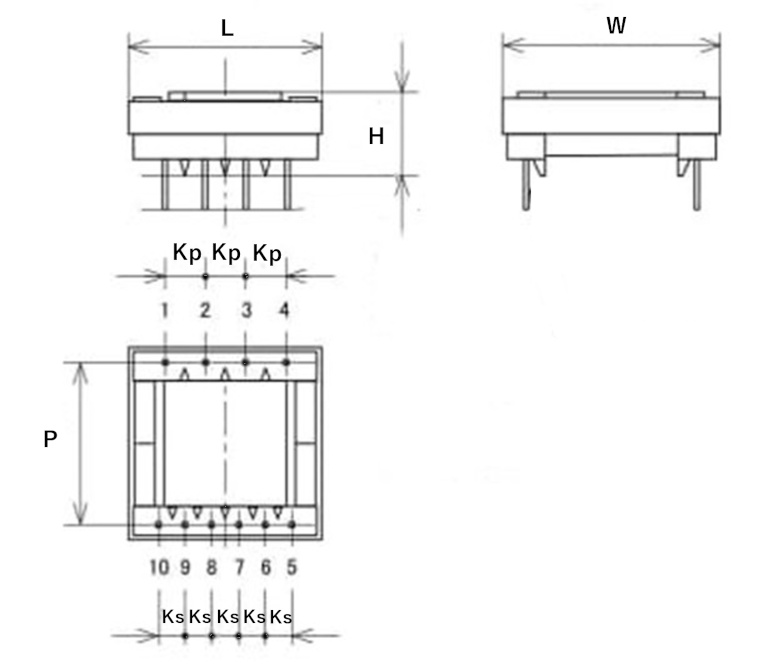

Fig
FFPT-8.3
3/3
2.5
2.5
6.0
φ0.6
8.5
8.5
8.5
1
FFPT-12.5
5/5
2.5
2.5
7.5
φ0.6
13.0
12.5
9.5
1
FFPT-13
5/5
2.5
2.5
8.5
φ0.6
13.5
13.0
15.0
1
FFPT-16
3/3
3.1
3.1
9.2
φ0.6
16.5
13.5
15.0
1
FFTP-19
3/4
4.0
4.0
11.0
φ0.7
19.5
15.5
16.5
1
FFTP-22
4/4
5.0
5.0
12.5
φ0.8
22.5
17.5
20.5
1
FFTP-25
4/4
5.0
5.0
17.5
φ0.8
25.5
18.5
20.5
1
FFTP-28
5/5
5.0
5.0
20.0
φ0.8
28.5
22.0
23.5
1
FFTP-30
6/6
5.0
5.0
20.0
φ0.8
30.5
26.5
28.0
1
FFTP-35
5/5
5.0
5.0
22.5
φ0.8
35.5
26.0
30.0
1
FFTP-40A
6/6
5.0
5.0
22.5
φ0.8
40.5
28.5
37.5
1
FFTP-40B
6/6
5.0
5.0
25.0
φ0.8
40.5
28.5
37.5
1
FFTP-50
6/6
7.5
7.5
27.5
φ1.0
50.5
35.5
43.5
1
EER-25.5
4/4
5.0
5.0
12.5
φ0.8
26.0
20.0
18.5
1
EER-28
5/5
5.0
5.0
17.5
φ0.8
28.5
23.5
27.0
1
EER-28L
5/5
5.0
5.0
12.5
φ0.8
28.5
23.0
33.0
1
EER-29
13/13
2.54
2.54
17.5
φ0.49
35.0
24.5
26.0
1
EER-35
6/6
5.0
5.0
17.5
φ1.0
35.5
28.0
40.0
1
EER-35L
15/15
2.54
2.54
22.5
φ0.49
41.0
32.0
35.0
1
EER-40
7/7
5.0
5.0
25.0
φ1.0
40.5
30.5
41.5
1
EER-42
7/7
5.0
5.0
25.0
φ1.0
42.5
29.5
41.5
1
EER-28LH
6/6
5.0
5.0
30.0
φ0.8
29.5
37.0
26.0

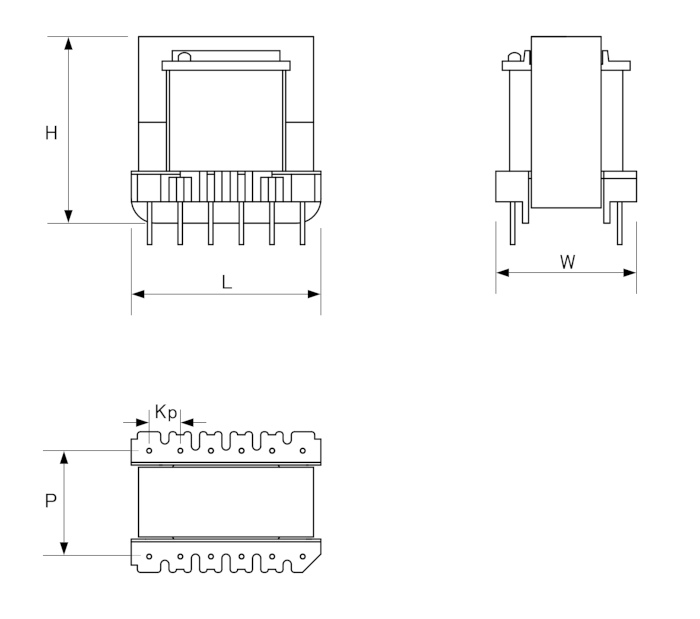

2
EER-35H
8/8
5.0
5.0
35.0
φ1.0
40.5
44.0
29.5
2
EER-40H
8/8
5.0
5.0
35.0
φ1.0
41.0
46.5
33.0
2
